Hydraulic Power Unit Parts

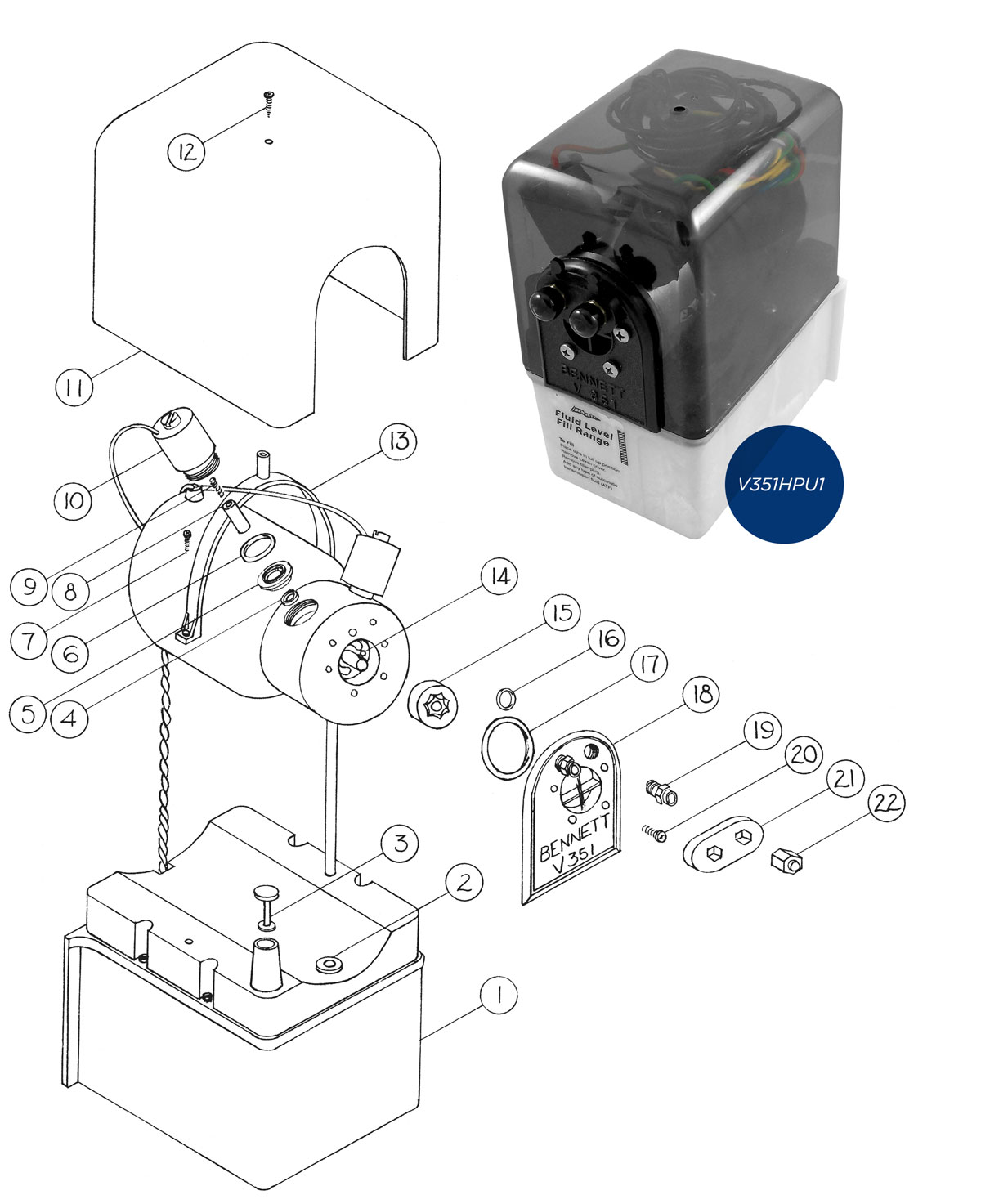

| Diagram | Part # | Description | |
|---|---|---|---|
 | 1 | VP1139 | Fluid Reservoir |
 | 2 | VP1162 | Rubber Grommet |
 | 3 | VP1140 | Filler Plug |
| 4 | VP1158 | Quad Ring |
 | 5 | VP1159 | Valve Seat |
| 6 | VP155 | 015 O-Ring |
 | 7 | VP1154 | #8 x 3/4" Phil Pan Sheet Metal Screw |
 | 8 | VP1161 | Valve Plunger |
 | 9 | VP1160 | Valve Spring |
 | 10 | VP1135R | Solenoid Valve (Red Wire) |
 | 11 | VP1135G | Solenoid Valve (Green Wire) |
 | 12 | VP1138 | Lexan Cover |
 | 13 | VP1142 | Motor Strap |
| 14 | VP1163 | 1/8″ Steel Ball |
| 15 | VP1164 | Gerotor |
| 16 | VP1157 | 008 O-Ring |
| 17 | VP1156 | 023 O-Ring |
 | 18 | VP1144 | HPU Face Plate |
 | 19 | VP1146 | 1/8″ Pipe to 1/4″ Tube |
| 20 | VP1165 | 10-32 x 3/4″ Machine Screw |
 | 21 | VP1141 | Hex Retainer |
 | 22 | T1127 | Nut with Ferrule |
 | H1179 | Mounting Bracket for HPU | |
 | H1180 | #10 x 1″ Full Threaded Screw (HPU mounting bracket fastener) | |
| PT110 | Pigtail for HPU or Control | |
 | V351HPU1 | Hydraulic Power Unit - 12 Volt | |
 | V351HPU2 | Hydraulic Power Unit – 24 Volt | |
 | DAHPU | Dual-Acting Hydraulic Power Unit |
